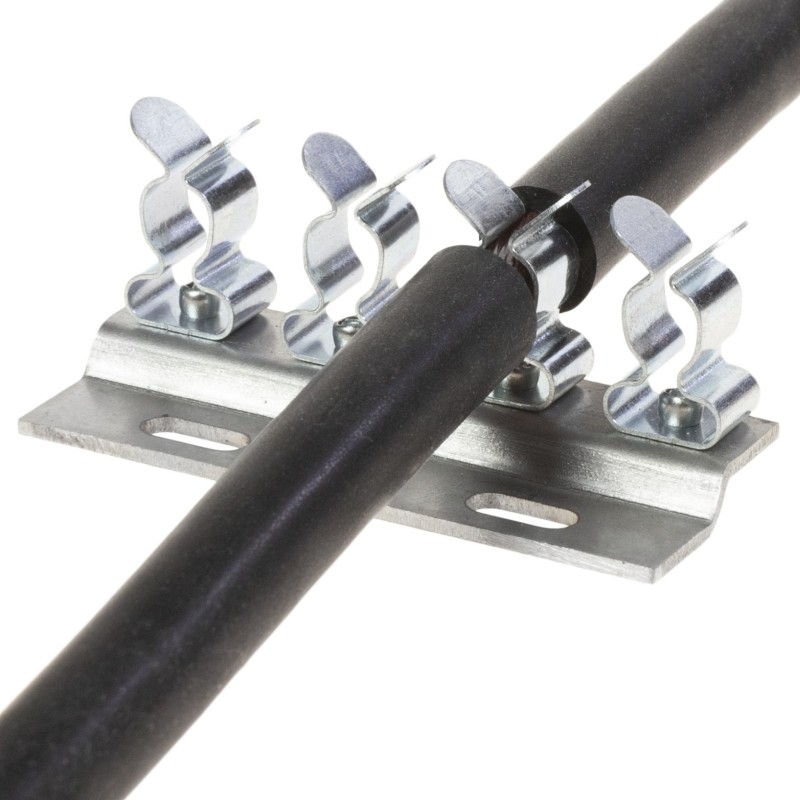

Wielokrotne zaciski ekranujące EMC mogą skrócić czas montażu i przestrzeń wielu pojedynczych zacisków. Podstawa zacisków jest mocowana za pomocą dwóch śrub M4. Idealne dla rozwiązań niestandardowych.
WŁAŚCIWOŚCI
• Dla kabli o średnicach 1,5 do 12 mm
• Montaż zatrzaskowy, bez konieczności używania narzędzi
• Stały nacisk na osłonę kabla bez konieczności przeprowadzania testów i kontroli
| Model | Kod | Ilość | Zakres [mm] |
Wymiary [mm] | Opak. [szt.] |
||
| B | L | H | |||||
| MSU 3x 1,5-3 | 1734030310 | 3 | 1,5 – 3 | 46 | 30 | 19,1 | 1 |
| MSU 3x 3-6 | 1734030320 | 3 | 3 – 6 | 46 | 30 | 21,6 | |
| MSU 3x 7-9 | 1734030330 | 3 | 7 – 9 | 46 | 30 | 24,0 | |
| MSU 3x 9-12 | 1734030340 | 3 | 9 – 12 | 46 | 30 | 27,2 | |
| MSU 4x 1,5-3 | 1734030410 | 4 | 1,5 – 3 | 61 | 30 | 19,1 | |
| MSU 4x 3-6 | 1734030420 | 4 | 3 – 6 | 61 | 30 | 21,6 | |
| MSU 4x 7-9 | 1734030430 | 4 | 7 – 9 | 61 | 30 | 24,0 | |
| MSU 4x 9-12 | 1734030440 | 4 | 9 – 12 | 61 | 30 | 27,2 | |
| MSU 5x 1,5-3 | 1734030510 | 5 | 1,5 – 3 | 72 | 46 | 19,1 | |
| MSU 5x 3-6 | 1734030520 | 5 | 3 – 6 | 72 | 46 | 21,6 | |
| MSU 5x 7-9 | 1734030530 | 5 | 7 – 9 | 72 | 46 | 24,0 | |
| MSU 5x 9-12 | 1734030540 | 5 | 9 – 12 | 72 | 46 | 27,2 | |
| MSU 6x 1,5-3 | 1734030610 | 6 | 1,5 – 3 | 88 | 62 | 19,1 | |
| MSU 6x 3-6 | 1734030620 | 6 | 3 – 6 | 88 | 62 | 21,6 | |
| MSU 6x 7-9 | 1734030630 | 6 | 7 – 9 | 88 | 62 | 24,0 | |
| MSU 6x 9-12 | 1734030640 | 6 | 9 – 12 | 88 | 62 | 27,2 | |
| MSU 7x 1,5-3 | 1734030710 | 7 | 1,5 – 3 | 104 | 78 | 19,1 | |
| MSU 7x 3-6 | 1734030720 | 7 | 3 – 6 | 104 | 78 | 21,6 | |
| MSU 7x 7-9 | 1734030730 | 7 | 7 – 9 | 104 | 78 | 24,0 | |
| MSU 7x 9-12 | 1734030740 | 7 | 9 – 12 | 104 | 78 | 27,2 | |
| MSU 8x 1,5-3 | 1734030810 | 8 | 1,5 – 3 | 120 | 94 | 19,1 | |
| MSU 8x 3-6 | 1734030820 | 8 | 3 – 6 | 120 | 94 | 21,6 | |
| MSU 8x 7-9 | 1734030830 | 8 | 7 – 9 | 120 | 94 | 24,0 | |
| MSU 8x 9-12 | 1734030840 | 8 | 9 – 12 | 120 | 94 | 27,2 | |
| MSU 9x 1,5-3 | 1734030910 | 9 | 1,5 – 3 | 140 | 116 | 19,1 | |
| MSU 9x 3-6 | 1734030920 | 9 | 3 – 6 | 140 | 116 | 21,6 | |
| MSU 9x 7-9 | 1734030930 | 9 | 7 – 9 | 140 | 116 | 24,0 | |
| MSU 9x 9-12 | 1734030940 | 9 | 9 – 12 | 140 | 116 | 27,2 | |
| MSU 10x 1,5-3 | 1734031010 | 10 | 1,5 – 3 | 150 | 126 | 19,1 | |
| MSU 10x 3-6 | 1734031020 | 10 | 3 – 6 | 150 | 126 | 21,6 | |
| MSU 10x 7-9 | 1734031030 | 10 | 7 – 9 | 150 | 126 | 24,0 | |
| MSU 10x 9-12 | 1734031040 | 10 | 9 – 12 | 150 | 126 | 27,2 | |
| MSU 11x 1,5-3 | 1734031110 | 11 | 1,5 – 3 | 166 | 140 | 19,1 | |
| MSU 11x 3-6 | 1734031120 | 11 | 3 – 6 | 166 | 140 | 21,6 | |
| MSU 11x 7-9 | 1734031130 | 11 | 7 – 9 | 166 | 140 | 24,0 | |
| MSU 11x 9-12 | 1734031140 | 11 | 9 – 12 | 166 | 140 | 27,2 | |
| MSU 12x 1,5-3 | 1734031210 | 12 | 1,5 – 3 | 172 | 156 | 19,1 | |
| MSU 12x 3-6 | 1734031220 | 12 | 3 – 6 | 172 | 156 | 21,6 | |
| MSU 12x 7-9 | 1734031230 | 12 | 7 – 9 | 172 | 156 | 24,0 | |
| MSU 12x 9-12 | 1734031240 | 12 | 9 – 12 | 172 | 156 | 27,2 | |
